Custom Fountain Pen Box: Insert Fit, Structure and Sample Checks

By Esion Package Editorial Team
Technical review: Esion Packaging Engineering Team
Last updated: October 27, 2026

A custom fountain pen box is a rigid or paperboard package built around a fitted insert that holds the pen in one fixed position, protects the nib and finish, and presents the brand. At Dongguan Esion Packaging Co., Ltd., we develop the box structure, insert and branding together, because a pen that fits an empty drawing can still rub, shift or jam the lid in the real sample.

This guide is for brands and buyers who need to specify a fountain pen box. It covers pen-specific fit, structure choice, insert design and sample checks. For general rigid box construction, see our custom setup boxes guide. For artwork files and print methods, see Custom Boxes with Logo.

The sequence is:

Pen specification → Structure → Insert → Branding → Sample → Production

Why Is a Fountain Pen Box Different From a General Gift Box?

A fountain pen is long and narrow, and it usually has a nib at one end, a clip on the cap and a polished surface. A pen box has to support all of these without creating pressure points, so the insert matters more than the outer box.

Pen feature	Packaging concern	Decision to make
Nib end	Impact and pressure at the tip	Support the pen without concentrated pressure on the nib; confirm the approach with the pen maker
Clip and cap band	Snagging or marking on the insert and lid	Cut the cavity to clear the clip; check lid clearance with the pen in place
Lacquer, resin or metal finish	Scratches and surface marks from insert contact	Choose the insert facing material and test it with the actual pen
Filling system (cartridge, converter, built-in)	Ink marks if an inked pen leaks	Decide whether the pen ships inked or empty, then choose a wipe-clean or absorbent insert surface
Weight and balance	Shifting or tilting when the box is moved	Use enough support points along the barrel; check heavier pens in the sample
Cap posted or separate	An extra part to position	Define one fixed position for the pen and the cap

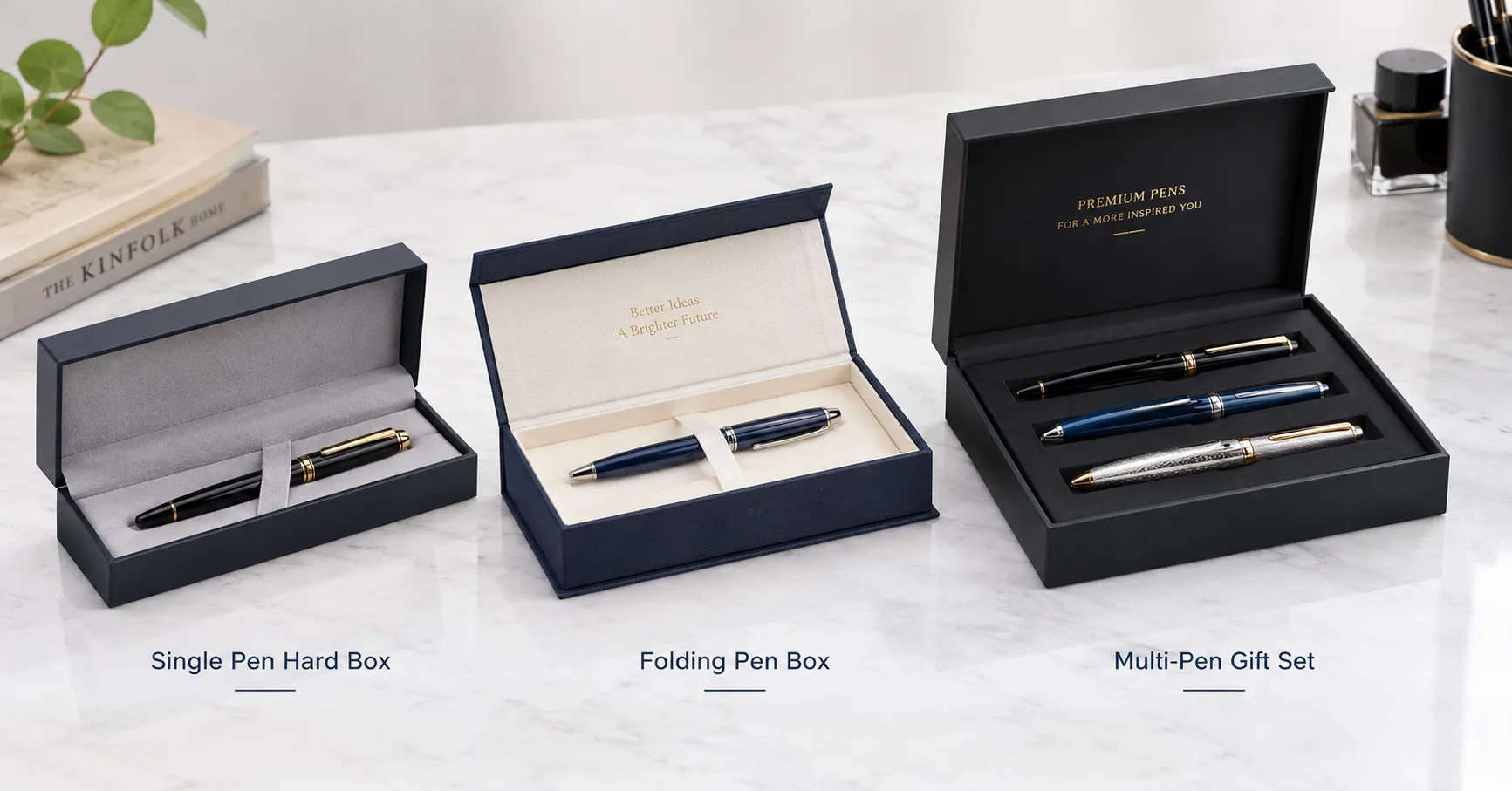

Single-pen, multi-pen and pen-set boxes

A single-pen box keeps the pen as the visual focus and makes a close fit easier to control. A multi-pen box needs a planned layout so that pens do not touch each other or the box walls. If the set includes a converter, spare cartridges, an ink bottle or a notebook, each item needs its own defined position in the insert.

Which Structure Suits a Fountain Pen Box?

The right structure depends on how the pen should be presented and how the box will be handled. For premium pens and gift sets, rigid structures are the usual choice. For promotional or entry-level pens, a folding paperboard box can be enough.

Structure	How it opens	Suits	Guide
Magnetic lid	Concealed magnets hold the lid closed	Premium gifting with a clean closure	Magnetic closure gift box
Hinged (book-style)	The lid stays attached and opens like a book	Pens presented to the buyer on opening	Custom hinged gift box
Drawer	A tray slides out of a sleeve	Slide-out presentation and multi-item sets	Drawer box packaging
Two-piece lid and base	A separate lid lifts off the base	A simple structure with easy fit control	Two-piece rigid setup box
Folding paperboard	A flat-packed carton assembled before use	Promotional and entry-level pens	Paper boxes

If the pens will be shipped directly to consumers, a rigid box also needs an outer shipping carton. Decide this at the structure stage, because it affects the size of the whole package.

How Should You Design the Insert for a Fountain Pen?

The insert should hold the pen firmly without pressing on the nib, clip or finish, and still let the user lift the pen out with one hand. Design it from measurements of the pen as it will actually be packed.

Measure the pen as it will be packed

Record these measurements before the insert is drawn:

1. Overall length, with the cap on or posted, as it will be packed
2. Maximum diameter, usually at the cap band or clip
3. Clip height above the barrel
4. Weight of the pen, and of any accessories packed with it
5. The filling system and whether the pen ships inked or empty
6. Every accessory that shares the box: converter, cartridges, ink bottle, notebook

Do not copy the pen’s external dimensions straight into the cavity. The cavity needs allowance for placing and removing the pen.

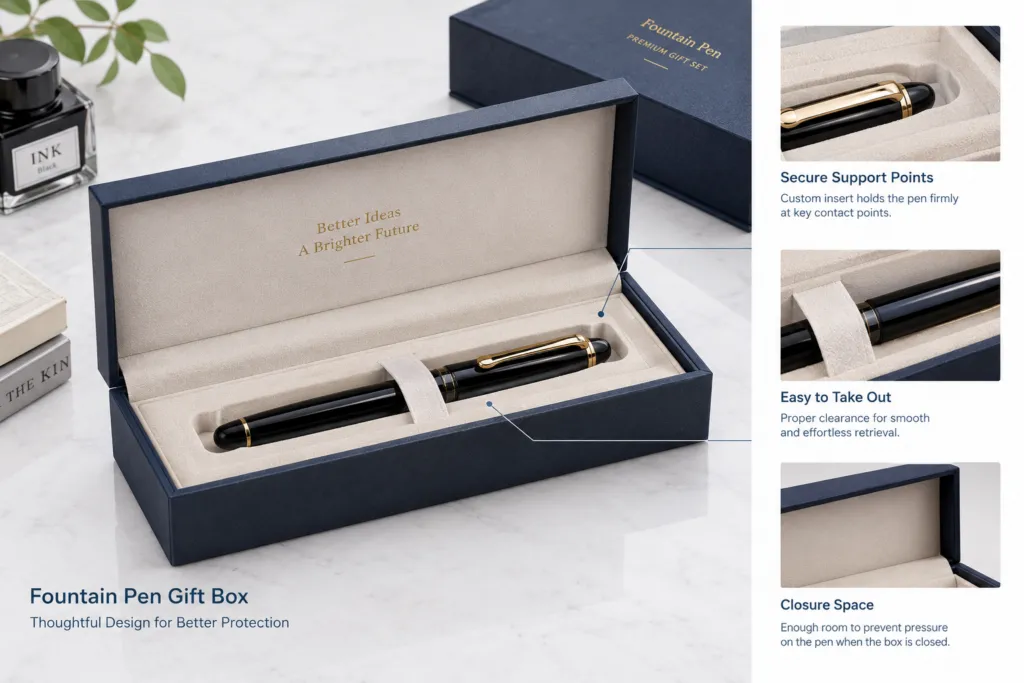

Support points and clearance

Support the barrel and cap at more than one point, so the pen does not rock, and keep the nib and clip free of concentrated load. Add a finger notch or lift ribbon where the pen would otherwise be hard to grip.

We do not publish one universal clearance figure. The right allowance depends on the insert material, cavity depth, pen shape and how the insert is cut, so it is set through sampling and written into the approved specification.

Choose the insert material and facing

Insert option	Character	Note for pen boxes
EVA foam	Firm, with precise cavity edges	Holds a defined shape for heavier or more complex pens
Sponge	Soft and cushioned	Gives a plush interior; check surface contact on delicate finishes
Corrugated paper	Structured, paper-based	A lighter, paper-only option for simple layouts
Special paper or paperboard	Paper appearance	Suits lighter pens and minimal presentation

For a fuller comparison of insert materials, see our jewelry box insert guide; the same principles apply to pens. If your pen has a delicate lacquer or special finish, tell us early so the facing material and surface contact can be tested in the sample.

How Should You Brand a Fountain Pen Box?

A pen box lid is a small surface, so the logo should be simple and sized with the lid in mind. Foil stamping and embossing usually look best when the mark has clear lines and enough spacing.

Three choices are specific to pen boxes:

• Foil colour: Match or deliberately contrast the foil with the pen’s trim colour, such as gold or silver, so the box and the pen look like one product.
• Placement: The lid centre is the usual position. Inside the lid or on a sleeve gives a second brand moment when the box is opened.
• Finish on the wrapping paper: A textured paper can soften a foil mark, so check the combination on a physical sample.

For artwork file requirements, placement zones and a full comparison of print methods, see Custom Boxes with Logo.

How Do You Check a Fountain Pen Box Sample?

Check the sample with the actual pen, not with an empty box or a dimensional drawing. Work through these checks in order:

1. Position: The pen sits in the intended position and does not move when the box is gently tilted.
2. Removal: The pen comes out with one hand, without force and without touching the cavity walls.
3. Lid clearance: The lid closes and opens freely with the pen and clip in place.
4. Surface contact: After the pen has been left in the insert, check the finish for marks or scuffs.
5. Multi-item layout: Each accessory has its own position and none of the items touch.
6. Branding: Logo position, foil colour and emboss depth match the approved artwork.

Once the sample is approved, the written specification and the physical sample become the production reference. Any later change to the pen, insert, material or finish should be reviewed before production continues. Our sample to mass production guide explains this stage in detail, and our quality page describes how we inspect finished orders.

What Should You Send for a Fountain Pen Box Quote?

A complete brief lets us recommend a structure and quote accurately. Send as many of these as you have:

• Pen length, maximum diameter, clip height and weight
• Filling system, and whether the pen ships inked or empty
• One pen or several, and any accessories in the box
• Preferred structure, or the way the pen should be presented
• Estimated order quantity
• Logo artwork, colours and finishing preferences
• Sales channel (retail, gifting or e-commerce) and destination market
• A reference sample, photo or packaging drawing

If you are still comparing suppliers, our guide on how to choose a gift box manufacturer lists what to ask before you commit.

Production Reference for Fountain Pen Boxes (as of October 2026)

Item	Reference
General MOQ	1,000 pieces; smaller runs are reviewed case by case at a higher unit cost
Pre-production sample	About 3 working days after the sample fee is received and materials and design are confirmed
Sample express delivery	About 3-5 days
Mass production	About 15 days after sample approval, depending on structure, finishing and approval status

These figures are general references and are reconfirmed when the quotation is prepared.

How Does Esion Package Support Fountain Pen Box Projects?

Dongguan Esion Packaging Co., Ltd. makes custom paper packaging, from structural development and insert design through printing, assembly, inspection and packing. For pen projects, we work from the pen itself: its measurements, finish and accessories decide the structure and the insert.

You can browse our rigid gift boxes and magnetic gift boxes for structure references, or read more about Esion Package.

Fountain Pen Box FAQ

How much clearance should a fountain pen have in its insert?

It depends on the insert material, cavity depth and pen shape, so we confirm it through sampling rather than a fixed figure. The pen should lift out with one hand and stay put when the box is tilted gently.

Can one box hold a pen and an ink bottle?

Yes. Give the pen and the bottle separate cavities and keep the bottle upright and held firmly. If the set will be shipped, test it for leakage and movement before approving production.

Can foam damage a lacquered or resin pen?

Insert contact can mark delicate finishes, depending on the pen and the insert facing. Test the actual pen in the sample, leave it in the insert for a while, and tell us about the finish early so we can choose a suitable facing material.

Does a fountain pen box need special nib protection?

The insert should support the pen without concentrated pressure on the nib. How the nib end is supported depends on the pen design, so confirm it with the pen maker and check it in the sample.

What are the MOQ and sample time for custom fountain pen boxes?

As of October 2026, our general MOQ is 1,000 pieces, and a pre-production sample takes about 3 working days once the sample fee, materials and design are confirmed. These figures are reconfirmed at quotation.
